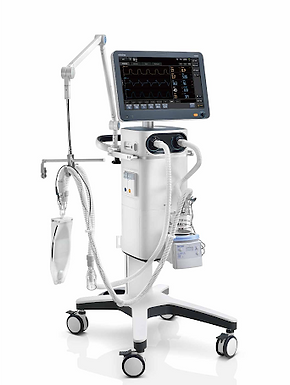

SV800 Ventilator

The Mindray SV800 Ventilator is a high-end, versatile ventilator designed to meet the needs of modern clinical environments. Here’s a detailed look at its features and specifications:

Key Features:

• Intuitive User Interface: The SV800 features a 18.5-inch color active matrix TFT touch screen with a resolution of 1920x1080 pixels. The user interface is customizable, allowing clinicians to arrange frequently-used functions and ventilation mode keys according to their preferences.

• PulmoSight™: This feature utilizes numerical and graphical displays to show real-time resistance, compliance, and spontaneous breathing status. Combined with the dynamic short trend display, clinicians can monitor and evaluate changes in the patient’s lung condition and adjust settings accordingly.

• Extensive Ventilation Modes: The SV800 supports a wide range of ventilation modes, including V-A/C (Volume Assist/Control), P-A/C (Pressure Assist/Control), V-SIMV (Volume-Synchronized Intermittent Mandatory Ventilation), P-SIMV (Pressure-Synchronized Intermittent Mandatory Ventilation), and more.

• Smart Alarm System: The ventilator includes a smart alarm system that provides real-time detailed information, quickly alerting clinicians to adverse situations and supporting early resolution.

• Minimal Maintenance: Routine maintenance is made easier with organized essential components such as the oxygen sensor, water trap, and HEPA filter. These components can be easily maintained without special tools.

• Expandable Capabilities: The SV800 is designed to embrace new technological advancements with ease, thanks to its latest software and platform. It includes integrated modules like SpO₂, mainstream or sidestream CO₂, and backup air supply.

Physical Specifications:

• Dimensions and Weight:

  • Dimensions (HxWxD): 1425 mm x 530 mm x 647 mm (including the trolley, including backup air supply)

  • Weight: Approximately 48 kg (including the trolley, including backup air supply)

  • Trolley Dimensions: 760 mm (depth) x 530 mm (width) x 980 mm (height)

  • Trolley Weight: 17 kg

Ventilation Specifications:

• Patient Type: Adult, Pediatric, Neonate

• Ventilation Modes: V-A/C, P-A/C, V-SIMV, P-SIMV, Duolevel, CPAP, PSV, VS, APRV, PRVC, PRVC-SIMV, AMV, CPRV, PSV-S/T, nCPAP, NIV, Apnea Ventilation

• Controlled Parameters: O₂%, TV (Tidal Volume), MV% (Minute Volume), f (Ventilation Frequency), I:E (Inspiratory to Expiratory Ratio), Tinsp (Inspiratory Time), Tslope (Time of Pressure Rising), Thigh, Tlow, Tpause, Flow, ΔPinsp (Inspiratory Pressure), ΔPsupp (Support Pressure), Phigh, Plow, PEEP (Positive End-Expiratory Pressure), Flow trigger, Pressure trigger, Exp% (Expiration Termination Level), Base flow, Auto, Neg.Plimit (in CPRV mode), Apnea Ventilation

• Tidal Volume: Adult: 100 to 4000 mL, Pediatric: 20 to 300 mL, Neonate: 2 to 100 mL

• Ventilation Frequency: Adult / Pediatric: 1 to 100 /min, Neonate: 1 to 150 /min

Additional Features:

• Emergency Solutions: CPRV (Cardio-Pulmonary Resuscitation Ventilation)

• Non-Invasive Ventilation: NIV (Non-invasive ventilation)

• Lung Protection Kit: Ensures lung protection during ventilation

• Seamless Integration: The SV800 can be seamlessly connected to the hospital’s clinical information system via the Mindray BeneLink and eGateway modules, or directly via the HL7.

The SV800 Ventilator is designed to provide ease of use, intelligent decision-making, and extensive ventilation therapy options, making it a valuable asset in any clinical setting.
